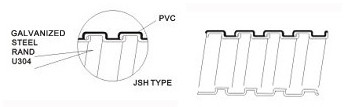

ˇ¤Galvanized steel core,PVC jacketed
ˇ¤Light style, high flexibility and liquid-tightness
ˇ¤Waterproof,corrosion resistant, sunlight resistant
ˇ¤For mass production equipment,machine tools and any narrow space for electrical wiring applications
ˇ¤Temperature range from -10ˇăCˇ«+70ˇăC,-20ˇăCˇ«+90ˇăC,-20ˇăCˇ«+105ˇăC,-40ˇăCˇ«+120ˇăC

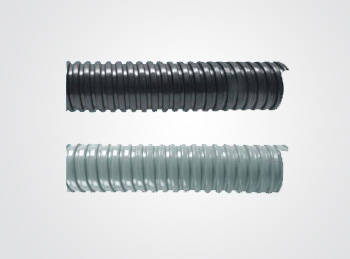

ˇ¤PVC colour: black,grey,other colors are available upon request
ˇ¤Halogen free corrugated Conduit is also available
| Cat No. |
Inch Size |
Inside Diameter(mm) |
Outside Diameter over Jacket(mm) |
Bending Radius(mm) |
Length of Roll |
| Min |
Max |
Min |
Max |
Min |
Meters |
| JSB-010 |
1/4¨• |
9.70 |
10.40 |
14.40 |
14.70 |
45 |
100 |
| JSB-013 |
3/8¨• |
12.30 |
12.80 |
16.70 |
17.20 |
50 |
100 |
| JSB-016 |
1/2¨• |
15.80 |
16.30 |
20.20 |
20.70 |
65 |
100 |
| JSB-020 |
3/4¨• |
20.70 |
21.20 |
25.50 |
26.10 |
75 |
50 |
| JSB-025 |
1¨• |
26.00 |
26.60 |
31.60 |
32.20 |
100 |
50 |
| JSB-032 |
1-1/4¨• |
34.70 |
35.40 |
40.80 |
41.50 |
125 |
30 |
| JSB-038 |
1-1/2¨• |
40.00 |
40.60 |
46.60 |
47.20 |
150 |
30 |
| JSB-051 |
2¨• |
51.30 |
51.90 |
58.10 |
58.70 |
175 |
20 |
| JSB-064 |
2-1/2¨• |
63.00 |
63.60 |
71.80 |
72.40 |
200 |
10 |
| JSB-075 |
3¨• |
78.00 |
78.70 |
87.20 |
87.90 |
225 |
10 |
| JSB-100 |
4¨• |
101.60 |
102.60 |
111.20 |
112.30 |
275 |
10 |
| JSB-125 |
5¨• |
125.00 |
127.00 |
137.00 |
139.50 |
300 |
5 |
| JSB-150 |
6¨• |
150.00 |
153.00 |
162.00 |
165.00 |
400 |
5 | |
Your positon: Home > PVC Coated Flexible steel Conduit Type
PVC Coated Flexible steel Conduit Type GSB-JSB
Product DescriptionŁş
