PVC Coated Flexible Conduit With SS Wire Braided Type	Your positon: Home > PVC Coated Flexible Conduit With SS Wire Braided Type

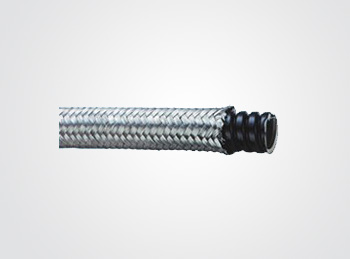

PVC Coated Flexible Conduit With SS Wire Braided TypeGSB-FB

Product Description：

·SS304 wirebraided，PVC coated Flexible steel Conduit inside
·Special in high pressure,dangerous location, durable to high temperature,blast resistant
·Special for mechanical system,plane,etc

Cat No.	Normal Size		I.D(mm)		O.D(mm)		Bending Radius(mm)
Cat No.	Inch	Metric(mm)	Min.	Max.	Min.	Max.	Bending Radius(mm)
FB-010	1/4"	10	9.70	10.20	15.40	15.70	60
FB-013	3/8"	13	12.30	12.80	17.40	17.80	70
FB-016	1/2"	16	15.80	16.20	21.30	21.70	90
FB-020	3/4"	21	20.80	21.30	26.60	27.00	110
FB-025	1"	26	26.40	27.10	33.60	34.10	150
FB-032	1-1/4"	34	35.00	35.50	42.20	42.70	175
FB-038	1-1/2"	40	40.10	40.60	48.20	48.80	200
FB-051	2"	51	50.50	51.20	58.70	59.40	230
FB-064	2-1/2 "	63	62.90	63.90	75.10	76.10	250
FB-075	3"	78	77.00	78.00	90.00	91.00	300
FB-100	4"	101	99.60	101.60	112.20	113.40	500
