BX-Flex Connector
Your positon: Home > BX-Flex Connector
BX-Flex Connector
Product Description£º
¡¤
American standard for flexible steel conduit or armored cable to steel box galvanized Pipe or enclosure
¡¤Material:High quality zinc alloy
¡¤Easy installation, secure,anti-corrsion

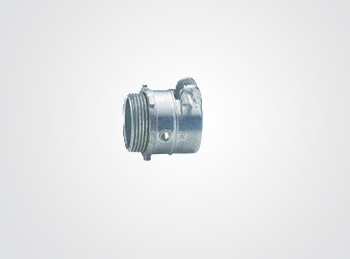

Straight Squeeze Type
Cat No.
Conduit Size
Diameter
Thread
d
A
B
C
BXS-038
3/8"
23.5
38.0
34.0
12.5
NPT 1/2"
BXS-050
1/2"
28.6
39.5
38.0
12.5
NPT 1/2"
BXS-075
3/4"
35.0
45.0
45.0
12.5
NPT 3/4"
BXS-100
1"
41.5
48.0
53.0
15.0
NPT 1"
BXS-125
1-1/4"
48.8
50.5
62.0
16.0
NPT 1-1/4"
BXS-150
1-1/2"
62.5
55.0
75.0
18.0
NPT 1-1/2"
BXS-200
2"
78.5
72.0
95.0
22.0
NPT 2"
BXS-250
2-1/2"
91.5
82.0
110.0
23.0
NPT 2-1/2"
BXS-300
3"
117.0
101.0
132.0
24.0
NPT 3"
BXS-400
4"
16.0
23.5
27.5
9.0
NPT 4"
