90°Angle Squeeze Type	Your positon: Home > 90°Angle Squeeze Type

90°Angle Squeeze Type

Product Description：

·American standard for flexible steel conduit or armored cable to steel box galvanized Pipe or enclosure
·Material:High quality zinc alloy
·Easy installation, secure,anti-corrsion.

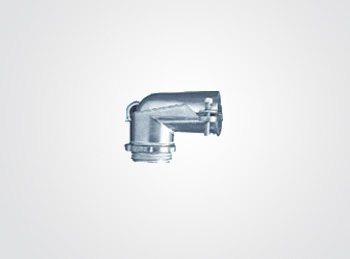

90° Angle Squeeze Type
Cat No.	Conduit Size	Diameter				Thread
Cat No.	Conduit Size	d	A	B	C	Thread
BXA-038	3/8"	16.0	33.5	31.0	10.0	NPT 1/2"
BXA-050	1/2"	23.5	42.0	44.0	11.0	NPT 1/2"
BXA-075	3/4"	28.6	46.0	50.0	12.0	NPT 3/4"
BXA-100	1"	35.0	65.0	65.0	14.0	NPT 1"
BXA-125	1-1/4"	41.5	75.0	75.0	16.0	NPT 1-1/4"
BXA-150	1-1/2"	48.5	122.0	102.0	18.0	NPT 1-1/2"
BXA-200	2"	62.5	122.0	110.0	18.0	NPT 2"
BXA-250	2-1/2"	78.5	130.0	140.0	22.0	NPT 2-1/2"
BXA-300	3"	91.5	145.0	160.0	22.0	NPT 3"
BXA-400	4"	117.0	200.0	220.0	27.0	NPT 4"
