BX-Flex Connector	Your positon: Home > BX-Flex Connector

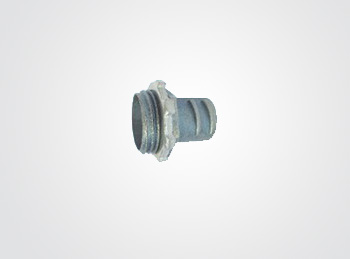

BX-Flex Connector

Product Description：

·American standard for flexible steel conduit or armored cable to steel box galvanized Pipe or enclosure
·Material:High quality zinc alloy
·Easy installation, secure,anti-corrsion.

Screw In Type
Cat No.	Conduit Size	Diameter				EMT mm
Cat No.	Conduit Size	d	A	B	C	EMT mm
BXI-038	3/8"	11.5	10.0	28.0	28.0	G1/2"
BXI-050	1/2"	15.5	14.0	28.0	28.0	G1/2"
BXI-075	3/4"	21.5	18.5	34.0	34.0	G3/4"
BXI-100	1"	24.5	22.0	41.0	41.5	G1"
