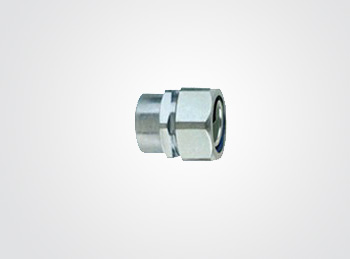

 Waterproof Connector |
 Product Description£º |
|
¡¤IP 54 standard, compactness structure,female thread
¡¤Good tightness, quakeproof capability, waterproof capability, dustproof capability
¡¤Can produce NPT standard, GB standard,EN standard,DIN standard item
¡¤Connect flexible steel conduit,steel box,steel tube,mainly used for electrial area
¡¤Material : zinc die cast£¨chrome-plating,nickel-plating£©
|
Inner Tooth Type |
| Cat No. |
Conduit Size |
Diameter |
Thread |
| d |
A |
B |
C |
| DPN-050 |
1/2" |
14.0 |
35.0 |
33.0 |
12.0 |
G1/2" |
| DPN-075 |
3/4" |
19.0 |
38.0 |
39.0 |
12.5 |
G3/4" |
| DPN-100 |
1" |
25.0 |
41.0 |
42.5 |
13.0 |
G1" |
| DPN-125 |
1-1/4" |
32.5 |
44.0 |
57.5 |
14.0 |
G1-1/4" |
| DPN-150 |
1-1/2" |
38.0 |
47.0 |
62.0 |
16.0 |
G1-1/2" |
| DPN-200 |
2" |
48.0 |
57.0 |
77.5 |
20.0 |
G2" |
| DPN-250 |
2-1/2" |
60.5 |
65.0 |
95.0 |
23.0 |
G2-1/2" |
| DPN-300 |
3" |
73.5 |
75.0 |
108.5 |
30.0 |
G3" |
| DPN-400 |
4" |
96.5 |
85.0 |
140.0 |
35.0 |
G4" | |
|
|
|
|
|
