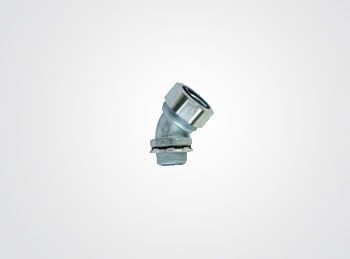

 45°Angle Type |
 Product Description£º |
|
¡¤IP 54 standard, compactness structure,male thread,45 degree connetor
¡¤Good tightness, quakeproof capability, corrosion resistance, waterproof capability, dustproof capability
¡¤Can produce NPT standard, GB standard,EN standard,DIN standard item
¡¤Connect flexible steel conduit,steel box,mainly used for electrial area
¡¤Material: zinc die cast(chrome-plating, nickel-plating)
|
45¡ãAngle Type |
| Cat No. |
Conduit Size |
Diameter |
Thread |
| d |
A |
B |
C |
| AOR45-038 |
3/8" |
11.5 |
25.0 |
29.0 |
11.5 |
G1/2" |
| AOR45-050 |
1/2" |
14.0 |
31.0 |
32.0 |
11.5 |
G1/2" |
| AOR45-075 |
3/4" |
19.0 |
40.0 |
40.0 |
15.0 |
G3/4" |
| AOR45-100 |
1" |
25.0 |
46.0 |
46.0 |
16.0 |
G1" |
| AOR45-125 |
1-1/4" |
32.5 |
53.0 |
57.0 |
17.0 |
G1-1/4" |
| AOR45-150 |
1-1/2" |
38.0 |
62.0 |
65.0 |
18.0 |
G1-1/2" |
| AOR45-200 |
2" |
49.0 |
75.0 |
79.0 |
20.0 |
G2" |
| AOR45-250 |
2-1/2" |
61.5 |
90.0 |
97.0 |
26.0 |
G2-1/2" |
| AOR45-300 |
3" |
74.5 |
105.0 |
114.5 |
28.0 |
G3" | |
|
|
|
|
|
