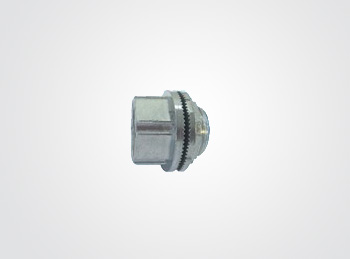

Rigid Water-Tight Hub
Product Description£º

¡¤Used to connect rigid conduit / IMC conduit and box or other accessories.
¡¤Material: zinc die cast
¡¤American standard, NPT thread
Cat No. Conduit Size Diameter Thread
D A B C
RWH-050 1/2" 15.0 33.0 34.0 14.0 G1/2" NPT1/2"
RWH-075 3/4" 19.5 38.0 41.5 15.0 G3/4" NPT3/4"
RWH-100 1" 34.0 42.0 48.0 17.0 G1" NPT1"
RWH-125 1-1/4" 34.0 46.0 58.5 19.0 G1-1/4" NPT1-1/4"
RWH-150 1-1/2" 40.0 45.0 65.0 19.0 G1-1/2" NPT1-1/2"
RWH-200 2" 47.5 48.5 80.0 20.0 G2" NPT2"
RWH-250 2-1/2" 63.0 54.0 98.0 25.0 G2-1/2" NPT2-1/2"
RWH-300 3" 74.0 65.5 109.0 26.0 G3" NPT3"
RWH-400 4" 97.0 68.0 137.0 29.0 G4" NPT4"
