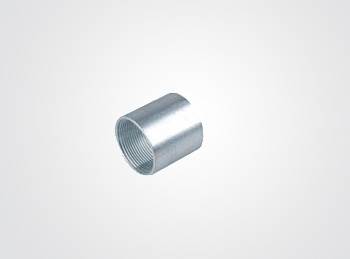

Coupling
Product Description£º

¡¤Used to connect steel tube
¡¤High temperature resistant oil proof, oxidation resistant
¡¤Material: seamless alloy steel
Cat No. Size of Plica Tube L1  mm L2  mm L  mm ¡ÓD  mm Thread of Steel Tube
¡ÓS mm Inch
KG-12 Lz-4#12 19.0 15 37 24.0 19.0 1/2"
KG-15 Lz-4#15 19.0 15 37 26.0 19.0 1/2"
KG-17 Lz-4#17 19.0 18 40 28.3 19.0 1/2"
KG-24 Lz-4#24 22.0 20 45 35.5 24.5 3/4"
KG-30 Lz-4#30 25.0 22 50 41.6 30.7 1"
KG-38 Lz-4#38 28.0 25 56 50.5 39.4 1-1/4"
KG-50 Lz-4#50 28.0 25 56 62.5 45.3 1-1/2"
KG-63 Lz-4#63 32.0 35 70 76.8 57.1 2"
KG-76 Lz-4#76 36.0 35 74 90.6 72.7 2-1/2"
KG-83 Lz-4#83 40.0 35 78 95.8 85.4 3"
KG-101 Lz-4#101 42.5 40 85 116.6 111.0 4"
