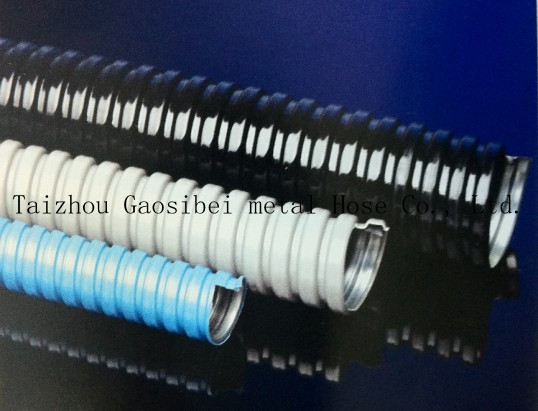

Plastic Coated Flexible HoseJSB-20
Product Description
Product material: (inner layer) adopting galvanized steel band with special insulation treatment
                             (outer layer) adopting PVC raw material (anti-UV, anti-aging)

Color: Black, gray

Working Temperature: -10 degree~+80 degree, instantaneously can be +100 degree

Product Property: 1. The flexible pipes have extremely good waterproof, insulating and pull resistance.
                              2. The thickened surface is made of PVC. Fire retardant was added to the PVC plastic.
                              3. The structure is buckle structure, which enhances the pull resistance and is not liable to crack or deform.
                              4. Extremely soft with food bending performance. The inner smoothness makes the entry of wires very easy.

Application areas: Used for wire protection at railways, engines, traffic system engineering, air-conditioners various machineries, power plants, chemical industries, power distribution system, vessels, mansions, factory buildings as well as the outdoors exposed locations.

Usage: protecting wires/cables and providing insulation, waterproofing as well as beautiful outlook of the wiring.

Method: Put the wires/cables through the pipes before fitting correspondent type of GSB-DPJ joints.

Item No.
Specifications
Outer diameter and tolerance  (mm)
Natural curve (mm)
Max. axial pull  (Kg)
Packaging unit  (  M )
Metric
G system
GSB-JSB-MT-6
6
3/16
9.00 0.25
40
335
100
GSB-JSB- MT-8
8
5/16
11.8 0.30
45
470
100
GSB-JSB- MT-10
10
1/4
14.5 0.30
55
590
100
GSB-JSB- MT-12
12
-
16.5 0.35
60
710
100
GSB-JSB- MT-13
13
3/8
17.5 0.35
65
765
100
GSB-JSB- MT-15
15
-
20.2 0.35
80
885
50
GSB-JSB- MT-16
16
1/2
21.2 0.35
85
940
50
GSB-JSB- MT-19
19
-
24.5 0.40
95
1120
50
GSB-JSB- MT-20
20
3/4
25.5 0.40
100
1180
50
GSB-JSB- MT-25
25
1
31.7 0.45
120
1450
25
GSB-JSB- MT-32
32
1 1/4
39.6 0.50
150
1885
25
GSB-JSB- MT-38
38
1 1/2
46.6 0.60
180
2240
20
GSB-JSB- MT-51
51
2
59.5 1.00
220
3000
10
GSB-JSB- MT-64
64
2 1/2
73.5 1.50
310
3770
10
GSB-JSB- MT-75
75
3
83.5 2.00
350
4405
10
GSB-JSB- MT-100
100
4
108.5 3.00
410
4700
10
