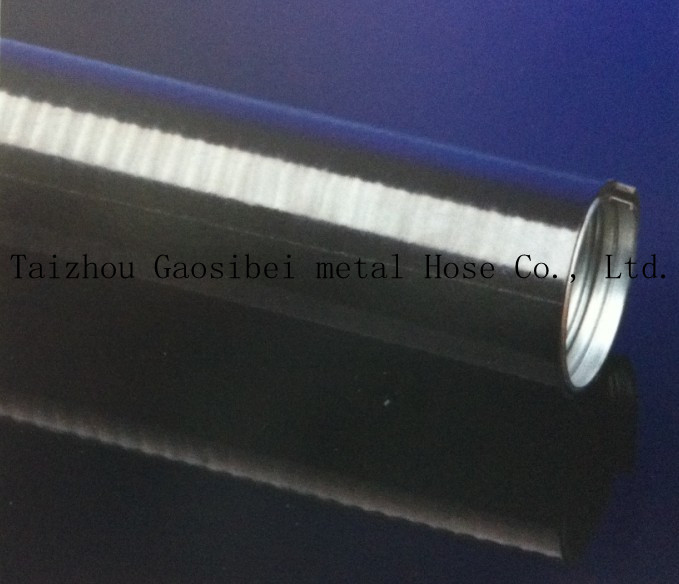

Product material: (inner layer) adopting galvanized steel band with special insulation treatment
(outer layer) adopting PVC raw material (anti-UV, anti-aging)
Color: Black and gray
Working temperature: -10 degree~+80 degree, instantaneously can be +100 degree
Property: 1. The flexible pipes have extremely good waterproof, insulating and pull resistance.
2. The surface is made of PVC material, which is added with fire retarding agent.
3. The structure is buckle structure, which enhances the pull resistance and is not liable to crack or deform.
4. Good bending performance. The inner smoothness makes the entry of wires very easy.
Application areas: Used for wire protection at railways, engines, traffic system engineering, air-conditioners various machineries, automatic controlling equipment, power plants, chemical industries, power distribution system, communication system, vessels, mansions, factory buildings as well as the outdoors¡¯ exposed locations.
Usage: protecting wires/cables and providing insulation, waterproofing as well as beautiful outlook of the wiring.
Method: Put the wires/cables through the pipes before fitting correspondent type of GSB-DPJ joints.
|
Item No. |
Specifications |
Outer diameter and tolerance (mm) |
Natural curve (mm) |
Max. axial pull (Kg) |
Packaging unit ( M ) |
|
Metric |
G system |
|
GSB-SL-M-6 |
¦µ 6 |
3/16 |
9.00¡À 0.25 |
40 |
335 |
100 |
|
GSB-SL-M-8 |
¦µ 8 |
5/16 |
11.8¡À 0.30 |
45 |
470 |
100 |
|
GSB-SL-M-10 |
¦µ 10 |
1/4 |
14.5¡À 0.30 |
55 |
590 |
100 |
|
GSB-SL-M-12 |
¦µ 12 |
- |
16.5¡À 0.35 |
60 |
710 |
100 |
|
GSB-SL-M-13 |
¦µ 13 |
3/8 |
17.5¡À 0.35 |
65 |
765 |
100 |
|
GSB-SL-M-15 |
¦µ 15 |
- |
20.2¡À 0.35 |
80 |
885 |
50 |
|
GSB-SL-M-16 |
¦µ 16 |
1/2 |
21.2¡À 0.35 |
85 |
940 |
50 |
|
GSB-SL-M-19 |
¦µ 19 |
- |
24.5¡À 0.40 |
95 |
1120 |
50 |
|
GSB-SL-M-20 |
¦µ 20 |
3/4 |
25.5¡À 0.40 |
100 |
1180 |
50 |
|
GSB-SL-M-25 |
¦µ 25 |
1 |
31.7¡À 0.45 |
120 |
1450 |
25 |
|
GSB-SL-M-32 |
¦µ 32 |
1 1/4 |
39.6¡À 0.50 |
150 |
1885 |
25 |
|
GSB-SL-M-38 |
¦µ 38 |
1 1/2 |
46.6¡À 0.60 |
180 |
2240 |
20 |
|
GSB-SL-M-51 |
¦µ 51 |
2 |
59.5¡À 1.00 |
220 |
3000 |
10 |
|
