Specification of thread: G
Product material: Location C and F are made of thickened zinc alloy and D is made of cast iron sheet.
Color: Metal color (silvery white)
Working temperature: -40 degree~+100 degree, instantaneously can be +120 degree
Protection classification: IP65
Product property: 1.Inner threaded type can be used either to link with screwed steel tubes or fitted with parts with outer screws.
2. Besides the specifications, the size and thread standard can be varied at your discretion as per requirements.
|
Metal Flexible Hose |
GSB-DPN Inner Thread |
Packaging unit ( M ) |
|
Metric |
G system |
G system |
Sheet steel |
DNP |
|
|
¦µ 12 |
3/8 |
G3/8 |
C19 |
DNP 3/8 |
100 |
|
¦µ 15(16) |
1/2 |
G1/2 |
C19 |
DNP 1/2 |
100 |
|
¦µ 20(19) |
3/4 |
G3/4 |
C25 |
DNP 3/4 |
50 |
|
¦µ25 |
1 |
G1 |
C31 |
DNP 1 |
50 |
|
¦µ 32 |
1/1/4 |
G1/1/4 |
C39 |
DNP 1-1/4 |
25 |
|
¦µ 38(40) |
1/1/2 |
G1/1/2 |
C51 |
DNP 1-1/2 |
25 |
|
¦µ 51(50) |
2 |
G2 |
C63 |
DNP 2 |
10 |
|
¦µ 64(70) |
2/1/2 |
G2/1/2 |
C75 |
DNP 2-1/2 |
10 |
|
¦µ 75(80) |
3 |
G3 |
|
DNP 3 |
5 |
|
¦µ 100 |
4 |
G4 |
|
DNP 4 |
5 |
|
¦µ 125 |
5 |
G5 |
|
DNP 5 |
5 |
|
¦µ 150 |
6 |
G6 |
|
DNP 6 |
5 |
|
Your positon: Home > Inner Threaded Union

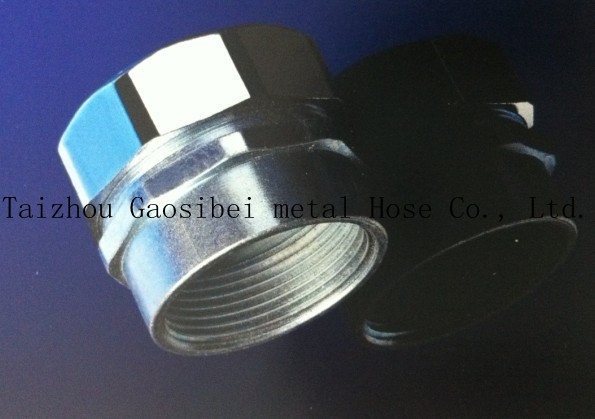

Inner Threaded Union25
Product Description£ŗ
