Product material: Location A.C and F are made of thickened zinc alloy; B.&E made of chemigum and D is made of iron sheet.
Color: Metal color (white)
Working temperature: -40 degree~+100 degree, instantaneously can be +120 degree
Protection classification: IP65
Product property: 1.Thickened zinc alloy or chromium plated; beautiful outlook, compact structure and high strength.
2. Flexible pipe sleeve design and flexible pope buckle design making assembly easy and time-saving, promising strong pull resistance.
3. Water resistant, dust resistant, inactive with salts, acids, alkalis, alcohols, oils and greases as well as general dissolvent.
4. Besides the following specifications, the size and thread standard can be varied at your discretion as per requirements.
|
Metal Flexible Hose |
Thread Think Steel Tube
(water, gas, steam, tube) |
Thin Steel Tube
(electric wire tube) |
|
Metric |
G system |
Nominal |
British system |
Outer diameter x wall thickness |
Nominal |
British system |
Outer diameter x wall thickness |
|
¦µ 10 |
1/4 |
#10 |
1/4 |
|
#12 |
1/2 |
12.76x1.60 |
|
¦µ 12(13) |
3/8 |
#12 |
3/8 |
17.00x2.25 |
#15 |
5/8 |
15.87x1.60 |
|
¦µ 15(16) |
1/2 |
#15 |
1/2 |
21.25x2.75 |
#20 |
3/4 |
19.05x1.80 |
|
¦µ 20(19) |
3/4 |
#20 |
3/4 |
26.75x2.75 |
#25 |
1 |
25.40 x1.80 |
|
¦µ 25 |
1 |
#25 |
1 |
33.50x3.25 |
#32 |
1-1/4 |
31.75x1.80 |
|
¦µ 32 |
1-1/4 |
#32 |
1-1/4 |
42.25x3.25 |
#40 |
1-1/2 |
38.10x1.80 |
|
¦µ 38(40) |
1-1/2 |
#40 |
1-1/2 |
48.00x3.50 |
#50 |
2 |
50.80x2.00 |
|
¦µ 51(50) |
2 |
#50 |
2 |
60.00x3.50 |
#70 |
2-1/2 |
63.50x2.50 |
|
¦µ64(70) |
2-1/2 |
#70 |
2-1/2 |
75.50x3.75 |
#80 |
3 |
76.20x3.20 |
|
¦µ 75(80) |
3 |
#80 |
3 |
88.50x4.00 |
|
|
|
|
¦µ 100 |
4 |
#100 |
4 |
114x4.00 |
|
|
|
|
¦µ 125 |
5 |
#125 |
5 |
140x4.50 |
|
|
|
|
¦µ 150 |
6 |
#150 |
6 |
165.00x4.50 |
|
|
|
|
Your positon: Home > Sleeve Style Union/ Circlip Self Secured Union

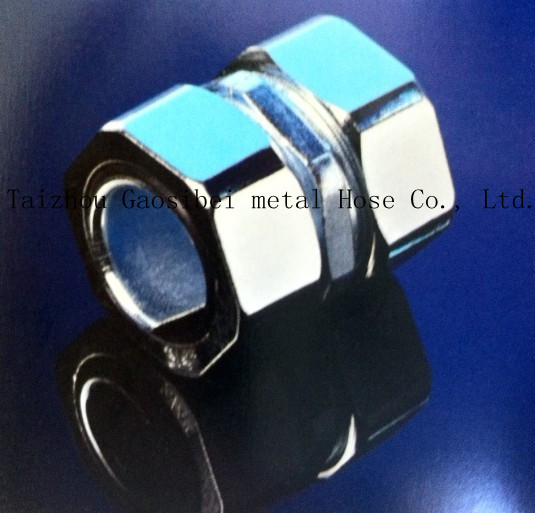

Sleeve Style Union/ Circlip Self Secured Union25
Product Description£ŗ
