Product material: PA (polyamide)
Specification of thread: Metric thread/PG thread
Working temperature: -40 degree~+110 degree
Color: Black. Other colors are customizable
Product property: Special design with inner locking buckle making the mounting and dismounting done by simple plugging or pulling, without using tools.

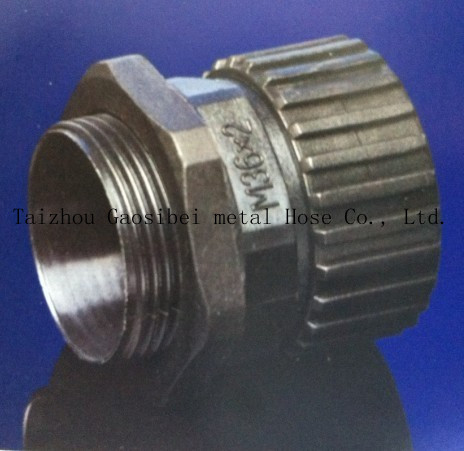

Method: GSB-SM-G type flexible pipe joints are the fittings of the flexible pipes, which can be either connected with the housing of equipments or connected with electric equipment with inner threaded access hole as per the thread selected. Simply insert the flexible pipe into the union.
|
Item No. |
Specifications for flexible pipe |
Metric dimension of thread |
AG Outer diameter(mm) |
AG Inner diameter (mm) |
GL(mm) |
H |
packing |
|
GSB-SM-G-M12 |
AD10.0 |
M12¡Á 1.5 |
12.0 |
6.5 |
10 |
22.5 |
100 |
|
GSB-SM-G-M16 |
AD10.0 |
M16¡Á 1.5 |
16.0 |
6.5 |
10 |
22.5 |
100 |
|
GSB-SM-G-M16 |
AD13.0 |
M16¡Á 1.5 |
16.0 |
10.0 |
10 |
23.0 |
100 |
|
GSB-SM-G-M18 |
AD13.0 |
M18¡Á 1.5 |
16.0 |
10.0 |
11.5 |
23.0 |
100 |
|
GSB-SM-G-M20 |
AD13.0 |
M20¡Á 1.5 |
16.0 |
10.0 |
11.5 |
23.0 |
50 |
|
GSB-SM-G-M18 |
AD15.8 |
M16¡Á 1.5 |
18.0 |
12.0 |
10 |
24.0 |
50 |
|
GSB-SM-G-M16 |
AD15.8 |
M18¡Á 1.5 |
18.0 |
12.0 |
11.5 |
24.0 |
50 |
|
GSB-SM-G-M20 |
AD15.8 |
M20¡Á 1.5 |
16.0 |
12.0 |
11.5 |
24.0 |
50 |
|
GSB-SM-G-M20 |
AD18.5 |
M20¡Á1.5 |
20.0 |
14.3 |
12 |
25.5 |
50 |
|
GSB-SM-G-M20 |
AD21.2 |
M20¡Á 1.5 |
20.0 |
17.0 |
13 |
27.0 |
50 |
|
GSB-SM-G-M24 |
AD21.2 |
M24¡Á 1.5 |
24.0 |
17.0 |
13 |
27.0 |
50 |
|
GSB-SM-G-M25 |
AD21.2 |
M25¡Á 1.5 |
25.0 |
17.0 |
13 |
27.0 |
50 |
|
GSB-SM-G-M25 |
AD25.0 |
M25¡Á 1.5 |
25.0 |
20.0 |
14 |
30.0 |
50 |
|
GSB-SM-G-M25 |
AD28.5 |
M25¡Á 1.5 |
25.0 |
23.0 |
20 |
34.0 |
20 |
|
GSB-SM-G-M27 |
AD28.5 |
M27¡Á 2.0 |
27.0 |
23.0 |
14 |
34.0 |
20 |
|
GSB-SM-G-M32 |
AD34.5 |
M32¡Á 1.5 |
32.0 |
29.0 |
20 |
36.0 |
10 |
|
GSB-SM-G-M36 |
AD34.5 |
M36¡Á 2.0 |
36.0 |
29.0 |
14 |
36.0 |
10 |
|
GSB-SM-G-M40 |
AD34.5 |
M40¡Á 1.5 |
40.0 |
29.0 |
15 |
38.5 |
10 |
|
GSB-SM-G-M40 |
AD42.5 |
M40¡Á 1.5 |
40.0 |
36.0 |
15 |
38.5 |
8 |
|
GSB-SM-G-M48 |
AD42.5 |
M48¡Á 2.0 |
48.0 |
36.0 |
15 |
38.5 |
8 |
|
GSB-SM-G-M50 |
AD54.5 |
M50¡Á 1.5 |
50.0 |
38.0 |
16 |
39.0 |
5 |
|
GSB-SM-G-M60 |
AD54.5 |
M63¡Á 2.0 |
60.0 |
53.0 |
16 |
39.0 |
5 |
|
