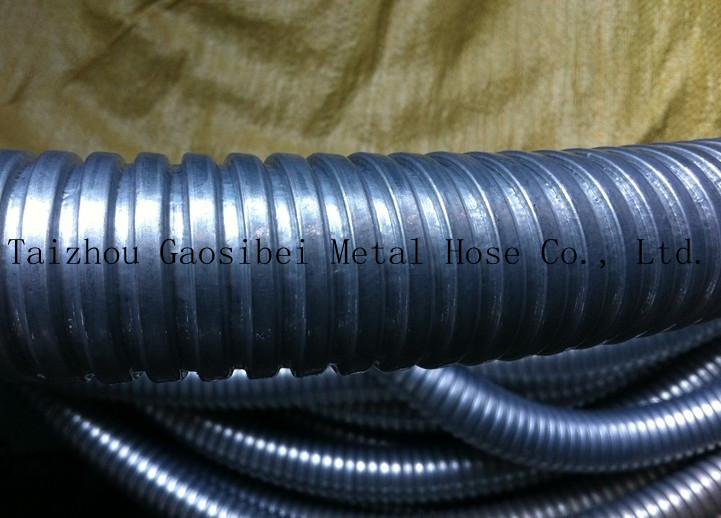

Vacuum cleaner stretch hose
1. Light weight
2. Good quality
3. Factory
4. RoHS
Name:
Vacuum cleaner stretch hose, EVA profile hose, PVC spiral hose, plastic hose, vacuun hose, industrial hose, wire conduit, corrugated
Materials:
PVC, EVA, PE, PA, PP, PU, TPU, POE,
Plastic coated steel wires
Techniques:
Bow mould, injection mould, extrusion, spiral, corrugated and so on.
Features:
1 Highly flexible, light weight and high tensile strength
2 1: 3, 1: 2, 1: 6 compress rate all available
3 Crush-proof, abrasion and tearing resistant
4 Fire frame
5 Low noise performances
6 Available with molded- and screw-cuffs or special fittings
Applications:
1 Stretch hose and extension hose for home or industrial Vacuum Cleaners
2 Wire loom for cable protection tubing
3 Drain hose for air conditioning and inlet hose and outlet hose washing machines
4 Industrial and household Ventilation hose
5 HVAC systems and central vac conditioning
6 Air diffusers for fume flues.
|
Item No. |
Specifications |
Outer diameter and tolerance (mm) |
Natural curve (mm) |
Max. axial pull (Kg) |
Packaging unit ( M ) |
|
Metric |
G system |
|
GSB-JSB-MT-6 |
¦µ 6 |
3/16 |
9.00¡À 0.25 |
40 |
335 |
100 |
|
GSB-JSB- MT-8 |
¦µ 8 |
5/16 |
11.8¡À 0.30 |
45 |
470 |
100 |
|
GSB-JSB- MT-10 |
¦µ 10 |
1/4 |
14.5¡À 0.30 |
55 |
590 |
100 |
|
GSB-JSB- MT-12 |
¦µ 12 |
- |
16.5¡À 0.35 |
60 |
710 |
100 |
|
GSB-JSB- MT-13 |
¦µ 13 |
3/8 |
17.5¡À 0.35 |
65 |
765 |
100 |
|
GSB-JSB- MT-15 |
¦µ 15 |
- |
20.2¡À 0.35 |
80 |
885 |
50 |
|
GSB-JSB- MT-16 |
¦µ 16 |
1/2 |
21.2¡À 0.35 |
85 |
940 |
50 |
|
GSB-JSB- MT-19 |
¦µ 19 |
- |
24.5¡À 0.40 |
95 |
1120 |
50 |
|
GSB-JSB- MT-20 |
¦µ 20 |
3/4 |
25.5¡À 0.40 |
100 |
1180 |
50 |
|
GSB-JSB- MT-25 |
¦µ 25 |
1 |
31.7¡À 0.45 |
120 |
1450 |
25 |
|
GSB-JSB- MT-32 |
¦µ 32 |
1 1/4 |
39.6¡À 0.50 |
150 |
1885 |
25 |
|
GSB-JSB- MT-38 |
¦µ 38 |
1 1/2 |
46.6¡À 0.60 |
180 |
2240 |
20 |
|
GSB-JSB- MT-51 |
¦µ 51 |
2 |
59.5¡À 1.00 |
220 |
3000 |
10 |
|
GSB-JSB- MT-64 |
¦µ 64 |
2 1/2 |
73.5¡À 1.50 |
310 |
3770 |
10 |
|
GSB-JSB- MT-75 |
¦µ 75 |
3 |
83.5¡À 2.00 |
350 |
4405 |
10 |
|
GSB-JSB- MT-100 |
¦µ 100 |
4 |
108.5¡À 3.00 |
410 |
4700 |
10 |
