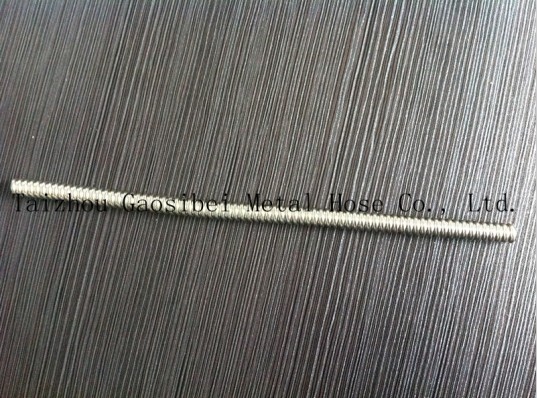

Product Material: Galvanized steel band
Product Property: lighter than other products of the same kind. Moreover, it has super-soft and very good bending performance. The inner smoothness makes the entry of wires very easy.
Application Areas: Used for the wire/cable protection for machines, mansions and factory buildings. Provide insulation for wires/cables protected. Besides, the cable¡¯s bending and beautiful outlook can be ensured.
Method: Put the wires /cables through the pipes before fitting correspondent type of GSB-DPJ joints.
|
Item No. |
Specifications |
Outer diameter and tolerance (mm) |
Natural curve (mm) |
Max. axial pull (Kg) |
Packaging unit ( M ) |
|
Metric |
G system |
|
GSB-SL-4 |
¦µ 4 |
1/8 |
6¡À 0.10 |
15 |
800 |
200 |
|
GSB-SL-6 |
¦µ 6 |
3/16 |
8.2¡À 0.10 |
19 |
875 |
200 |
|
GSB-SL-8 |
¦µ 8 |
5/16 |
10¡À 0.20 |
22 |
975 |
100 |
|
GSB-SL-10 |
¦µ 10 |
1/4 |
13¡À 0.20 |
30 |
1060 |
100 |
|
GSB-SL-12 |
¦µ 12 |
- |
15¡À 0.20 |
32 |
1140 |
100 |
|
GSB-SL-13 |
¦µ 13 |
3/8 |
16¡À 0.20 |
33 |
1175 |
100 |
|
GSB-SL-15 |
¦µ 15 |
- |
18¡À 0.20 |
37 |
1250 |
100 |
|
GSB-SL-16 |
¦µ 16 |
1/2 |
19¡À 0.20 |
40 |
1290 |
100 |
|
GSB-SL-19 |
¦µ 19 |
- |
23¡À 0.30 |
41 |
1510 |
50 |
|
GSB-SL-20 |
¦µ 20 |
3/4 |
24¡À 0.30 |
42 |
1545 |
50 |
|
GSB-SL-25 |
¦µ 25 |
1 |
29¡À 0.30 |
58 |
1735 |
50 |
|
GSB-SL-32 |
¦µ 32 |
1 1/4 |
37¡À 0.40 |
75 |
2104 |
25 |
|
GSB-SL-38 |
¦µ 38 |
1 1/2 |
44¡À 0.50 |
90 |
2240 |
25 |
|
GSB-SL-1 |
¦µ 51 |
2 |
57¡À 1.00 |
110 |
3400 |
20 |
|
GSB-SL-64 |
¦µ 64 |
2 1/2 |
72¡À 1.00 |
210 |
3990 |
20 |
|
GSB-SL-75 |
¦µ 75 |
3 |
83¡À 2.00 |
280 |
4700 |
15 |
|
GSB-SL-100 |
¦µ 100 |
4 |
108¡À 3.00 |
310 |
5300 |
10 |
