Your positon: Home > KZ-1 Flexible (metal) electrical conduit
KZ-1 Flexible (metal) electrical conduit25#
Product Description£º

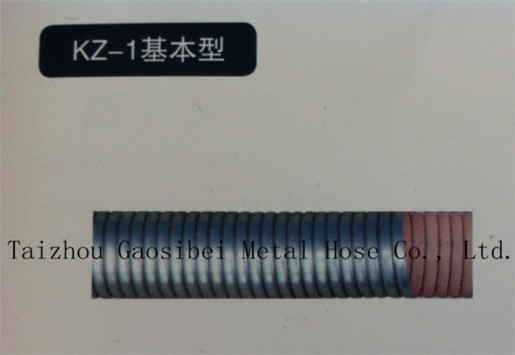

KZ-1 Flexible (metal) electrical conduit

Execution standard: Complies with JG/T3053-1998 " the Flexible Metal Wire Protection Conduit; GB/T20 041.1-2005/IEC61386-1:1996 standard requirements  of ¡°Electrical Installation of the first Part of the Catheter System; General Requirements ".

Technical Specifications: CECS87: 96 "Flexible Metal Wire Protection Tube Wiring Project Technical Specifications".

Design Specifications: JGJ16: -2008 "Civil Electrical Design Specifications".

Product Structure: The outer layer: the hot-dip galvanized steel strip (Fezn);
The inner layer: flame-retardant anti-corrosion insulation layer.

Trial: Trial in dry places and buried in the concrete pipe, such as decoration ceiling, fire, lighting, instrumentation, engineering of electrical equipment installation of low-voltage electrical piping.

Characteristics: flexible, water-resistant, anti-corrosion, fire-retardant, insulation, security.

Advantages: 1. good flexible, easy construction.
2. double corrosion. Long service life.
3. Inner layer of insulation, safe and reliable.
4. Seismic shielding effect.
5. 100% material utilization up

The explanation: 1. Use basic accessory tube.
2. Flame retardant anti-corrosion insulation layer non-toxic, harmless, environmental protection and so on.

Item No.
I.D.
mm
O.D.
mm
O.D.
Tolerance
mm
Length/
Roll
m
Wt./roll
kg
Relevant Conduit
Relevant Conduit for Electric Wire
mm
¡¯¡¯
mm
¡¯¡¯
15#
16.0
19.0
¡À0.2
50
18.5
15
1/2
16
5/8
17#
18.3
21.5
¡À0.2
50
24.5
20
3/4
19
3/4
24#
24.8
28.8
¡À0.2
5
14.3
25
1
25
1
30#
30.9
34.9
¡À0.2
25
25.5
32
11/4
32
11/4
38#
38.9
42.9
¡À0.4
25
30.6
40
11/2
38
11/2
50#
50.5
54.9
¡À0.4
25
39.5
50
2
51
2
63#
64.6
69.1
¡À0.6
10
19.5
65
21/2
64
21/2
76#
77.9
82.9
¡À0.6
10
25.3
(65)
(21/2)
76
3
83#
82.6
88.1
¡À0.6
10
27.4
80
3


101#
101.1
107.3
¡À0.6
5
17.1
100
4


130#
126.4
132.6
¡À0.6
5
18.9
125
5
