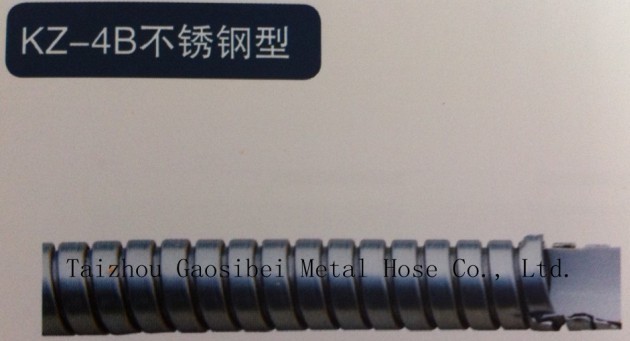

KZ-4B Stainless Flexible (metal) electrical conduit
Execution standard: Complies with JG/T3053-1998 " the Flexible Metal Wire Protection Conduit; GB/T20 041.1-2005/IEC61386-1:1996 standard requirements of ¡°Electrical Installation of the first Part of the Catheter System; General Requirements ".
Technical Specifications: CECS87: 96 "Flexible Metal Wire Protection Tube Wiring Project Technical Specifications".
Design Specifications: JGJ16: -2008 "Civil Electrical Design Specifications".
Product Structure: The outer layer: the stainless steel band;
The inner layer: two layers of insulating paint.
Trial: Trial in dry places and buried in the concrete pipe, such as decoration ceiling, fire, lighting, instrumentation, engineering of electrical equipment installation of low-voltage electrical piping.
Characteristics: flexible, water-resistant, anti-corrosion, fire-retardant, insulation, security.
Advantages: 1. good flexible, easy construction.
2. double corrosion. Long service life.
3. Inner layer of insulation, safe and reliable.
4. Seismic shielding effect.
5. 100% material utilization up
6. More applicable to the harsh environment, humidity greater occasions.
The explanation: 1. Use basic accessory tube.
2. Flame retardant anti-corrosion insulation layer non-toxic, harmless, environmental protection and so on.
|
Item No. |
I.D.
mm |
O.D.
mm |
O.D.
Tolerance
mm |
Length/
Roll
m |
Wt./roll
kg |
Relevant Conduit |
Relevant Conduit for Electric Wire |
|
mm |
¡¯¡¯ |
mm |
¡¯¡¯ |
|
15# |
16.0 |
19.0 |
¡À0.2 |
50 |
18.5 |
15 |
1/2 |
16 |
5/8 |
|
17# |
18.3 |
21.5 |
¡À0.2 |
50 |
24.5 |
20 |
3/4 |
19 |
3/4 |
|
24# |
24.8 |
28.8 |
¡À0.2 |
5 |
14.3 |
25 |
1 |
25 |
1 |
|
30# |
30.9 |
34.9 |
¡À0.2 |
25 |
25.5 |
32 |
11/4 |
32 |
11/4 |
|
38# |
38.9 |
42.9 |
¡À0.4 |
25 |
30.6 |
40 |
11/2 |
38 |
11/2 |
|
50# |
50.5 |
54.9 |
¡À0.4 |
25 |
39.5 |
50 |
2 |
51 |
2 |
|
63# |
64.6 |
69.1 |
¡À0.6 |
10 |
19.5 |
65 |
21/2 |
64 |
21/2 |
|
76# |
77.9 |
82.9 |
¡À0.6 |
10 |
25.3 |
(65) |
(21/2) |
76 |
3 |
|
83# |
82.6 |
88.1 |
¡À0.6 |
10 |
27.4 |
80 |
3 |
|
|
|
101# |
101.1 |
107.3 |
¡À0.6 |
5 |
17.1 |
100 |
4 |
|
|
|
130# |
126.4 |
132.6 |
¡À0.6 |
5 |
18.9 |
125 |
5 |
|
|
|
