KV-1 Waterproof Flexible (Metal) Electrical Conduit 38
Product Description£º

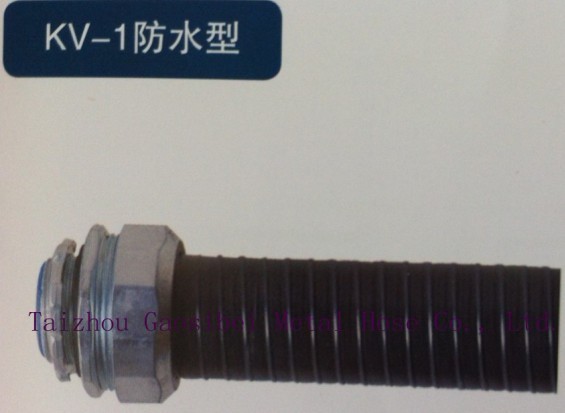

KV-1 Waterproof Flexible (Metal) Electrical Conduit


Execution standard: Complies with JG/T3053-1998 " the Flexible Metal Wire Protection Conduit; GB/T20 041.1-2005/IEC61386-1:1996 standard requirements  of ¡°Electrical Installation of the first Part of the Catheter System; General Requirements ".

Technical Specifications: CECS87: 96 "Flexible Metal Wire Protection Tube Wiring Project Technical Specifications".

Design Specifications: JGJ16: -2008 "Civil Electrical Design Specifications".

Product Structure: The outer layer: the stainless steel band;
The inner layer: two layers of insulating paint.

Product structure: KV-1 waterproof flexible (metal) electrical conduit, with a special way on the surface of KZ flexible (metal) electrical conduit, coating good flexibility and soft polyvinyl chloride (PVC).

Trial: wet locations of indoor and outside (light and dark dressing); steam place, a place of acid or alkali corrosion; wall; concrete floor; floor cushion; cast-in-place reinforced concrete floor; straight buried underground; electrical equipment installation; pessimism of low-voltage electrical engineering.

Characteristics: In addition of KZ basic type, there are excellent water resistance, corrosion resistance, chemical resistance and other characteristics.

Advantages: 1. good flexible, easy construction.
2. double corrosion. Long service life.
3. Inner layer of insulation, safe and reliable.
4. Seismic shielding effect.
5. 100% material utilization up
           6. Waterproof anti-UV, anti-aging, to further enhance the anti-corrosion properties.



The explanation: 1. Use waterproof accessory tube.
2. Flame retardant anti-corrosion insulation layer non-toxic, harmless, environmental protection and so on.

Item No.
I.D.
mm
O.D.
mm
O.D.
Tolerance
mm
Length/
Roll
m
Wt./roll
kg
Relevant Conduit
Relevant Conduit for Electric Wire
mm
¡¯¡¯
mm
¡¯¡¯
15#
16.0
20.6
¡À0.2
50
25.5
15
1/2
16
5/8
17#
18.3
23.1
¡À0.2
50
30.6
20
3/4
19
3/4
24#
24.8
30.4
¡À0.2
25
21.3
25
1
25
1
30#
30.9
36.5
¡À0.2
25
28.8
32
11/4
32
11/4
38#
38.9
44.9
¡À0.4
25
30.7
40
11/2
38
11/2
50#
50.5
56.9
¡À0.4
25
37.5
50
2
51
2
63#
64.6
71.5
¡À0.6
10
20.4
65
21/2
64
21/2
76#
77.9
85.3
¡À0.6
10
29.5
(65)
(21/2)
76
3
83#
82.6
90.9
¡À0.8
10
41.2
80
3


101#
101.1
110.1
¡À0.8
5
27.8
100
4


130#
126.4
136.7
¡À0.8
5
30.8
125
5
