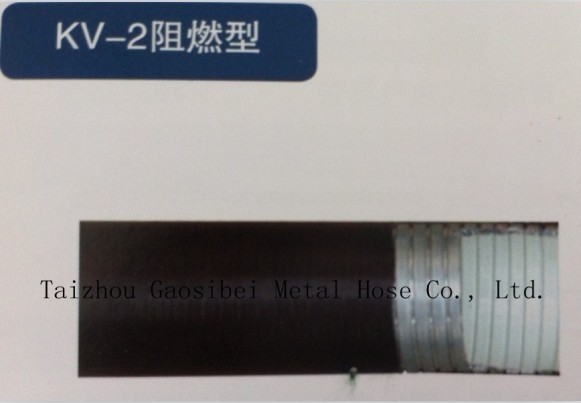

KV-2 Flame Retardant Flexible (Metal) Electrical Conduit
Execution standard: Complies with JG/T3053-1998 " the Flexible Metal Wire Protection Conduit; GB/T20 041.1-2005/IEC61386-1:1996 standard requirements of ¡°Electrical Installation of the first Part of the Catheter System; General Requirements ".
Technical Specifications: CECS87: 96 "Flexible Metal Wire Protection Tube Wiring Project Technical Specifications".
Design Specifications: JGJ16: -2008 "Civil Electrical Design Specifications".
Product Structure: The outer layer: the stainless steel band;
The inner layer: two layers of insulating paint.
Product structure: KV-2 flame retardant flexible (metal) electrical conduit, with special methods in the surface of KZ-flexible (metal) electrical conduit, coating good flexibility and soft polyvinyl chloride (PVC)oxygen index is 31.69 (standard requirements of 26)
Trial: wet locations of indoor and outside (light and dark dressing); steam place, a place of acid or alkali corrosion; wall; concrete floor; floor cushion; cast-in-place reinforced concrete floor; straight buried underground; electrical equipment installation; pessimism of low-voltage electrical engineering.
Characteristics: In addition of the characteristics of KZ basic and KV waterproof type, there are excellent water resistance, corrosion resistance, chemical resistance and other characteristics.
Advantages: 1. good flexible, easy construction.
2. double corrosion. Long service life.
3. Inner layer of insulation, safe and reliable.
4. Seismic shielding effect.
5. 100% material utilization up
6. High temperature resistant, anti-UV, anti-aging, further enhance the anti-corrosion properties.
The explanation: 1. Use waterproof accessory tube.
2. Flame retardant anti-corrosion insulation layer non-toxic, harmless, environmental protection and so on.
|
Item No. |
I.D.
mm |
O.D.
mm |
O.D.
Tolerance
mm |
Length/
Roll
m |
Wt./roll
kg |
Relevant Conduit |
Relevant Conduit for Electric Wire |
|
mm |
¡¯¡¯ |
mm |
¡¯¡¯ |
|
15# |
16.0 |
20.6 |
¡À0.2 |
50 |
25.5 |
15 |
1/2 |
16 |
5/8 |
|
17# |
18.3 |
23.1 |
¡À0.2 |
50 |
30.6 |
20 |
3/4 |
19 |
3/4 |
|
24# |
24.8 |
30.4 |
¡À0.2 |
25 |
21.3 |
25 |
1 |
25 |
1 |
|
30# |
30.9 |
36.5 |
¡À0.2 |
25 |
28.8 |
32 |
11/4 |
32 |
11/4 |
|
38# |
38.9 |
44.9 |
¡À0.4 |
25 |
30.7 |
40 |
11/2 |
38 |
11/2 |
|
50# |
50.5 |
56.9 |
¡À0.4 |
25 |
37.5 |
50 |
2 |
51 |
2 |
|
63# |
64.6 |
71.5 |
¡À0.6 |
10 |
20.4 |
65 |
21/2 |
64 |
21/2 |
|
76# |
77.9 |
85.3 |
¡À0.6 |
10 |
29.5 |
(65) |
(21/2) |
76 |
3 |
|
83# |
82.6 |
90.9 |
¡À0.8 |
10 |
41.2 |
80 |
3 |
|
|
|
101# |
101.1 |
110.1 |
¡À0.8 |
5 |
27.8 |
100 |
4 |
|
|
|
130# |
126.4 |
136.7 |
¡À0.8 |
5 |
30.8 |
125 |
5 |
|
|
|
