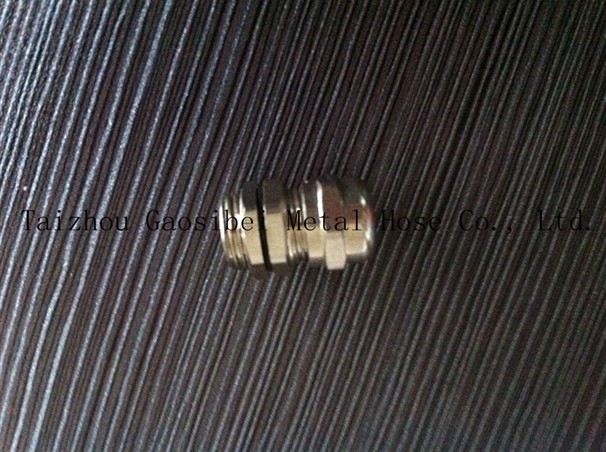

Specification of thread: G, metric and PG
Product material: Location A.C and F are made of high-quality thickened zinc alloy, B.E made of chemigums and D is made of iron sheet.
Color: Metal color (white)
Working temperature: -40 degree~+100 degree, instantaneously can be +120 degree
Protection classification: IP65
Product property: 1.Thickened zinc alloy or chromium plated; beautiful outlook, compact structure and high strength.
2. Flexible pipe sleeve design and flexible pope buckle design making assembly easy and time-saving, promising strong pull resistance.
3. Water resistant, dust resistant, inactive with salts, acids, alkalis, alcohols, oils and greases as well as general dissolvent.
4. Besides the following specifications, the size and thread standard can be varied at your discretion as per requirements.
|
Metal Flexible hose |
Spiral tooth standard |
Thread O. D |
Thread Length |
Joint Length |
Packing |
|
Metric |
G system |
Metric |
G system (G) |
PG |
D1 |
L1 |
L2+L3 |
|
|
¦Õ 6 |
3/16 |
M14 ¡Á 1.5 |
G1/4 |
PG7 |
13.2 |
8 |
16 |
100 |
|
¦Õ 8 |
5/16 |
M16 ¡Á 1.5 |
G3/8 |
PG9 |
13.2 |
8 |
16 |
100 |
|
¦Õ 10 |
1/4 |
M16 ¡Á 1.5 |
G3/8 |
PG9 |
16.5 |
8 |
17 |
100 |
|
¦Õ 12(13) |
3/8 |
M20 ¡Á 1.5 |
G3/8 |
PG11/PG13.5 |
16.5 |
8 |
18 |
100 |
|
¦Õ 15(16) |
1/2 |
M20 ¡Á 1.5/ M24 ¡Á 1.5 |
G1/2 |
PG13.5/PG16 |
21.3 |
11 |
23 |
100 |
|
¦Õ 20(19) |
3/4 |
M27 ¡Á 2.0/ M30 ¡Á 2.0 |
G3/4 |
PG21 |
26.6 |
14 |
22 |
50 |
|
¦Õ 25 |
1 |
M33 ¡Á 2.0/ M36 ¡Á 2.0 |
G1 |
PG29 |
33.4 |
15 |
28 |
50 |
|
¦Õ 32 |
1-1/4 |
M42 ¡Á 2.0/ M48 ¡Á 2.0 |
G1-1/4 |
PG29 |
42.1 |
15 |
30 |
25 |
|
¦Õ 38(40) |
1-1/2 |
M48 ¡Á 2.0/ M60 ¡Á 2.0 |
G1-1/2 |
PG36/PG42 |
47.8 |
16 |
32 |
25 |
|
¦Õ 51(50) |
2 |
M60 ¡Á 2.0/ M70 ¡Á 2.0 |
G2 |
PG48 |
59.6 |
18 |
34 |
10 |
|
¦Õ 64(70) |
2-1/2 |
M76 ¡Á 2.0 |
G2-1/2 |
|
75.1 |
22 |
38 |
10 |
|
¦Õ 75(80) |
3 |
M88 ¡Á 2.0 |
G3 |
|
87.8 |
22 |
46 |
5 |
|
¦Õ 100 |
4 |
M114 ¡Á 2.0 |
G4 |
|
113 |
24 |
50 |
5 |
|
¦Õ 125 |
5 |
M164 ¡Á 2.0 |
G5 |
|
|
|
|
5 |
|
¦Õ 150 |
6 |
M140 ¡Á 2.1 |
G6 |
|
|
|
|
2 |
|
