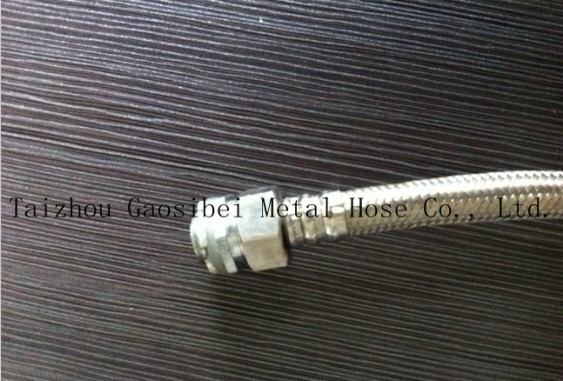

Product material: (inner) adopting galvanized steel strip
(middle) adopting PVC ultraviolet resistant, anti-aging
(outer) stainless steel metal wire
Product property: The product has excellent waterproof, insulating properties.
Application: machinery, ship machine wiring protection
Method: Put the wires/cables through the pipes before fitting correspondent type of GSB-DPJ joints.
|
Item No. |
Specifications |
Outer diameter and tolerance (mm) |
Max. axial pull (Kg) |
Packaging unit ( M ) |
|
Metric |
G system |
|
GSB-FB-008 |
¦µ 8 |
1/4 |
8 |
55 |
100 |
|
GSB-FB-010 |
¦µ 10 |
5/16 |
10 |
55 |
100 |
|
GSB-FB-013 |
¦µ 13 |
3/8 |
12.5 |
70 |
100 |
|
GSB-FB-016 |
¦µ 16 |
1/2 |
15.8 |
90 |
100 |
|
GSB-FB-020 |
¦µ 20 |
3/4 |
20 |
110 |
50 |
|
GSB-FB-025 |
¦µ 25 |
1 |
25 |
150 |
50 |
|
GSB-FB-032 |
¦µ 32 |
11/4 |
32 |
175 |
25 |
|
GSB-FB-038 |
¦µ 32 |
11/2 |
38 |
200 |
25 |
|
GSB-FB-051 |
¦µ 51 |
2 |
51 |
230 |
20 |
|
GSB-FB-064 |
¦µ 64 |
21/2 |
64 |
250 |
20 |
|
GSB-FB-075 |
¦µ 75 |
3 |
75 |
300 |
15 |
|
GSB-FB-100 |
¦µ 100 |
4 |
100 |
500 |
10 |
|
